12V LED Dimmer Switch, 30A Frequency Adjustable PWM LED Strip Controller | 0 - 100% Stepless Dimming, High-frequency Dimming No Flicker, DC 5-24V, for Single Color 5050 3528 5630 LED Lights, Knob
US$5.78
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by health-topic.notedworks.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$5.78
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by health-topic.notedworks.com
Free 30-day returns Details
Product details
| Management number | 247168393 | Release Date | 2026/08/16 | List Price | US$5.78 | Model Number | 247168393 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Wide Voltage DC PWM Dimmer - 5V/12V/24V 30A High Power --- This low voltage DC dimmer supports 5V-24V and up to 30A, ideal for single color LED strips, COB LED light strips , LED modules, including 5050, 2835, and 5630 types. Not suitable for multi-color mixed LED lamps. Perfect for RVs, boats, and under-cabinet lighting. Note: Only for DC power supply, not compatible with AC, not for 120V AC, RGB, RGBW, CCT, or addressable LED.

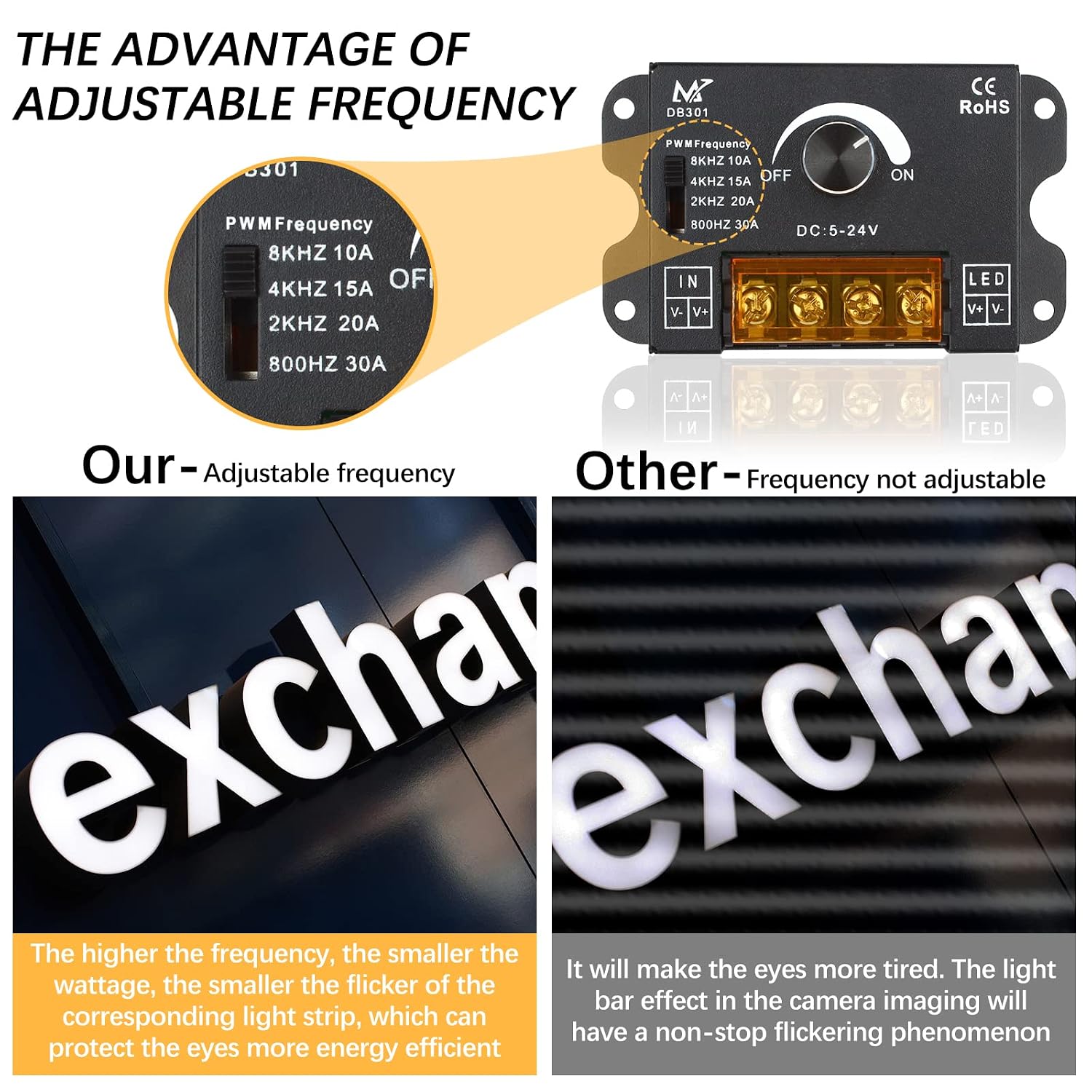

- PWM dimming methods - No Flicker, Fine adjustment --- This 12V led dimmer switch Using advanced PWM digital dimming technology, this dimmer ensures smooth brightness control from 0% to 100% without flicker. Can choose from four PWM frequencies, 8KHZ(10A)/4KHZ(15A)/2KHZ(20A)/800HZ(30A)(Please note, A higher PWM frequency results in a lower output currentt!). Please use this product correctly according to the load of the lamps within the specified frequency and current range.
- Frequency Adjustable Dimmer - Eye Protection & Camera-Friendly --- Features adjustable frequency control to eliminate flickering, making it gentle on the eyes and compatible with camera recording. Energy-efficient and ideal for home, marine, dry, protected RV, boat, truck, cabinet, deck, and automotive LED applications(power supply and LED strip not included.).
- Single Channel High Power Dimmer - Up to 720W --- Supports high-power applications: 5V 150W, 12V 360W, and 24V 720W. Compatible with single color LED strips, COB strips, and modules. Suitable for household lighting, trucks, yachts and ships, warehouses, patios and gardens (Please note: This product is not waterproof. For scenarios involving water sources, waterproof measures need to be taken.). Input voltage = Output voltage. Avoid excessive current. Protect your LED lights. These LED lights are mainly used for adjusting single-color LED lights and Led.

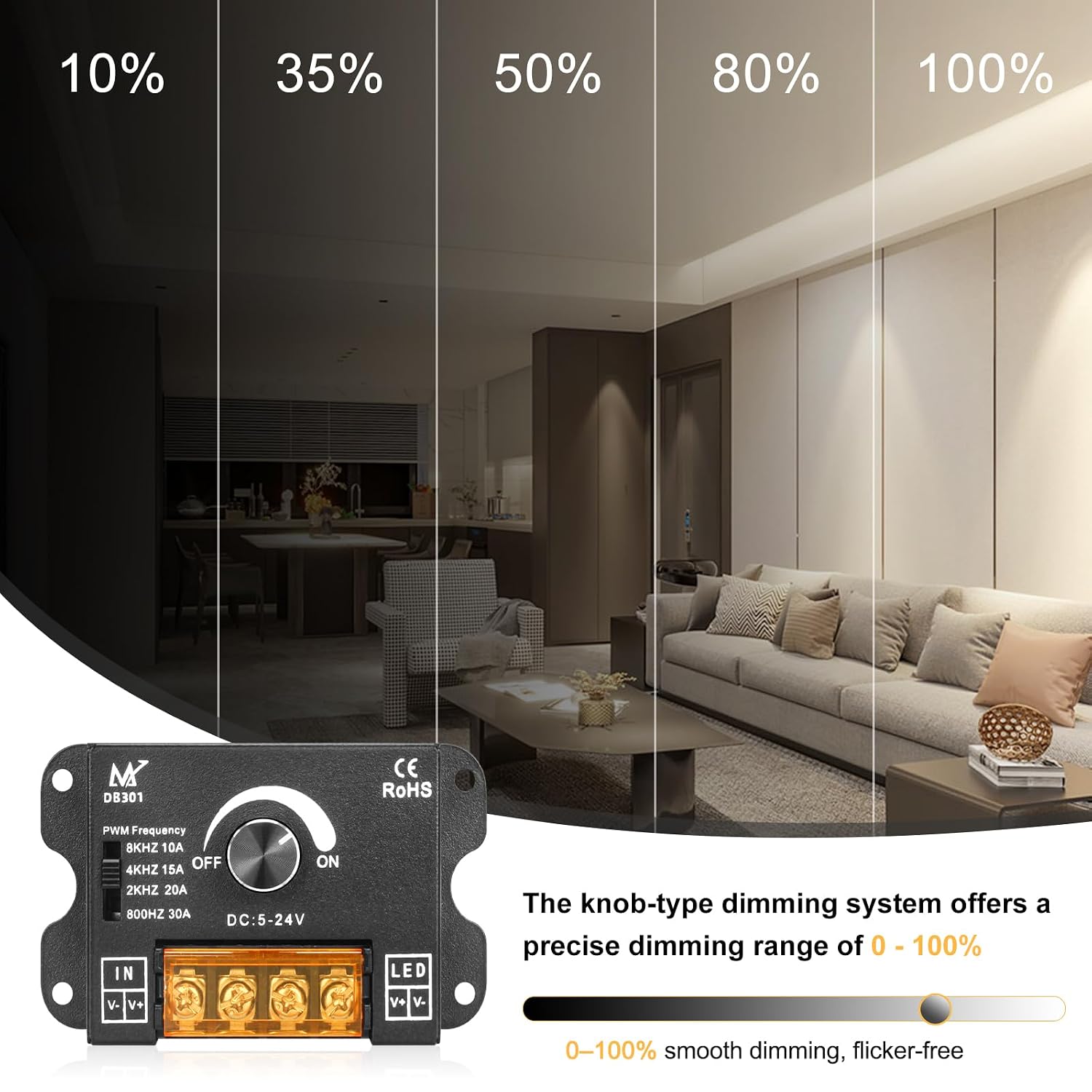

- Rotary dial fine dimming - 0% to 100% adjustment --- This 12V led dimmer switch have durable metal housing offers superior heat dissipation and corrosion resistance. There is a black knob. By rotating it, you can adjust the brightness of the LED lights, allowing for continuous adjustment of the brightness from 0% to 100%. The dimming process is smooth and fine, enabling you to easily achieve the desired lighting intensity.
| ASIN | B0G3WKTFKY |
|---|---|
| Model | Low Pressure PWM Single Color LED Dimmer |
| Wattage | 720 watts |
| Terminal | Screw |
| Brand Name | Taoellen |
| Unit Count | 1 Count |
| Part Number | FB-0648-ILUS2 |
| Switch Type | Rotary |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Rotary knob / PWM Dimmer |
| Manufacturer | Taoellen |
| Material Type | Metal, Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Screw |
| Current Rating | 30 A |
| Operation Mode | ON-OFF |
| Item Dimensions | 3.46 x 2.05 x 1.18 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 24 volts |
| Specification Met | CE |
| Compatible Devices | single color LED strips, COB LED light strips , LED modules(5050, 2835, and 5630 types) |
| Included Components | 1 x LED Switch Dimmer, 1 x User Manual |
| Number of Positions | 1 |
| Warranty Description | NO |
| Upper Temperature Rating | 60 °C |
| Compatible with Vehicle Type | truck |
| International Protection Rating | IP20 |
